Tapered Roller Bearing 395A/394A Single Row With Steel Cage Material

Ask Lasest Price
Brand Name :	QRL
Model Number :	90366-50001
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P
Supply Ability :	50000
Delivery Time :	10-15 Working

Add to Cart

Product Details
Company Profile

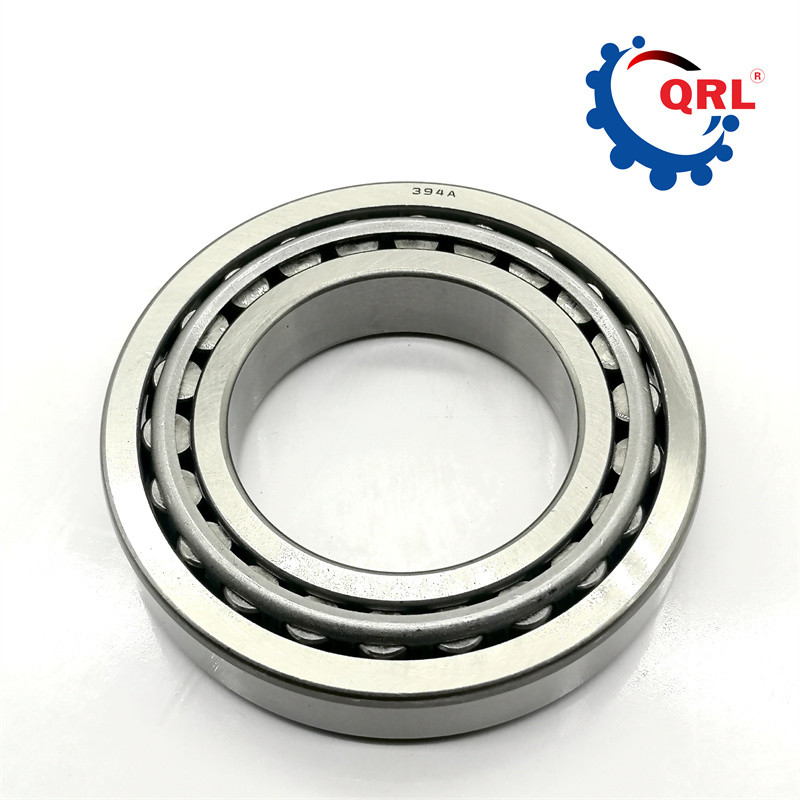

Tapered Roller Bearing 395A/394A Single Row With Steel Cage Material

Tapered roller bearing 395A/394A Single-row - Inch series

Tapered Roller Bearing Specification

The Tapered Roller Bearing, known as 395-394A-TIMKEN TIMKEN, has an inner diameter of 63.5 mm, an outer diameter of 110 mm and a thickness of 22 mm.

Inch Taper Roller Bearing Description

The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring.

Product number

Part No.	BOUNDARY DIMENSIONS (in m.m.)					LOAD RATING		LIMITING SPEED (R.P.M.)		MASS
Part No.	d	D	B	C	T	STATIC (Co) KN	DYNAMIC (C) KN	Grease	Oil	(~ Kg.)
LM 102949 / LM 102910	45.242	73.431	19.812	15.748	19.558	76	54	4800	6400	0.307
LM 603049 / LM 2603011	45.242	77.788	19.842	15.08	19.842	70.3	55.3	5850	7500	0.37
HM 204049 / HM 204010	45.987	90.975	32	26.5	32	150.5	119.1	4300	5600	0.94
359-S/354X	46.038	85	21.692	17.462	20.635	89.5	76.1	4400	5800	0.49
HM 804846 / HM 804810	47.625	95.25	29.37	23.02	30.162	140	104.3	4000	5300	0.98
528/522	47.625	101.6	36.068	26.988	34.925	169	137.3	3800	5000	1.29
CK 50 K / 3720	50	93.264	30.302	23.812	30.162	148.9	110.9	4000	5300	0.87
JW 5049 / JW 5010	50	105	29	22	32	145.5	114.3	3400	4500	1.23
370A / 362A	50.8	88.9	22.225	16.513	20.638	91	76.5	4300	5600	0.51
28580 / 25821	50.8	92.075	25.4	19.845	24.607	116.1	84.2	4000	5300	0.7
455/452	50.8	107.95	29.317	27	32.557	148	115	3500	4700	1.34
3780 / 3720	50.8	93.264	30.302	23.812	30.162	148.9	110.9	4000	5300	0.84
33889 / 33822	50.8	95.25	28.575	22.225	27.783	140	107.3	3900	5200	0.88

Taper Roller Bearings Applications

Q: Are you trading company or manufacturer ?

A: We are factory and trader .

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
