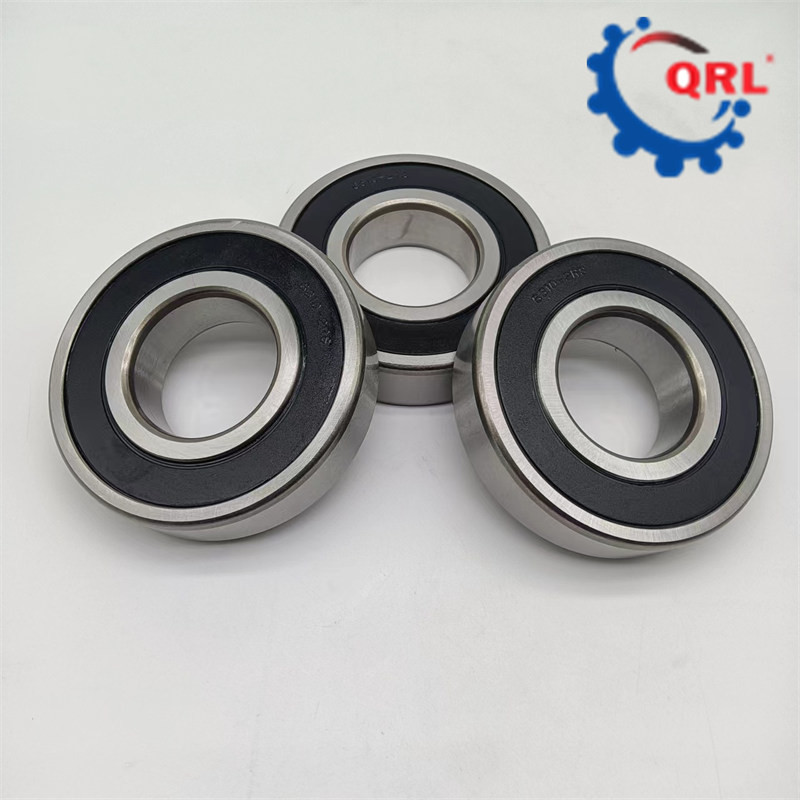

6310-2RS High Speed Deep Groove Ball Bearing, Rubber Seal
50x110x27mm
Deep Groove Ball Bearing Specification
| d - Internal diameter | 50 mm |
| D - External diameter | 110 mm |
| B - Bearing/Inner ring width | 27 mm |
| d1 - External diameter inner ring | 66,2 mm |
| D1 - Inner diameter outer ring | 94,8 mm |
| rs - Min fillet radius | 2 mm |
| Radial clearance class | C3 |
| Mass | 1,1 kg |
Deep Groove Ball Bearing Description
Single row deep groove ball bearings are particularly versatile,
have low friction and are optimized for low noise and low
vibration, which enables high rotational speeds. They accommodate
radial and axial loads in both directions, are easy to mount, and
require less maintenance than many other bearing types.
Deep Groove Ball Bearing Product number
| Model | d | D | H | Cr | Cor | grease | oil | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6304 | 20 | 52 | 15 | 15.8 | 7.88 | 13000 | 16000 | 0.142 |
| 6305 | 25 | 62 | 17 | 20.6 | 11.3 | 11000 | 13000 | 0.232 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 6600 | 12000 | 0.346 |
| 6307 | 35 | 80 | 21 | 33.4 | 19.3 | 8500 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 40.8 | 24 | 7000 | 8500 | 0.639 |
| 6309 | 45 | 100 | 25 | 52.8 | 31.8 | 6300 | 7500 | 0.837 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery,
lifting equipment, Agricultural machinery: tractors, harvesting
machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining
machinery, lifting machinery, loading and unloading machinery,
industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery,
compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil
refining machinery, chemical machinery, gas compressors, paper
machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking
machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
